Modelling graph data in Neo4j and visualising in R

Using SHINY, HTMLWIDGETS, IGRAPH

Wesley GOI
Graph Enthusiast

Background

  • Neo4j is a noSQL database which models its data as a graph
  • latest version is 2.3.2

Outline

  1. Using RNeo4j to connect with a hosted graphDB via Neo4j's REST API
  2. Executing cypher queries
  3. Using IGRAPH to plot and visualise data locally.
  4. Using SHINY and a HTMLTOOLS package SIGMA to interactively visualise graph data in a dashboard

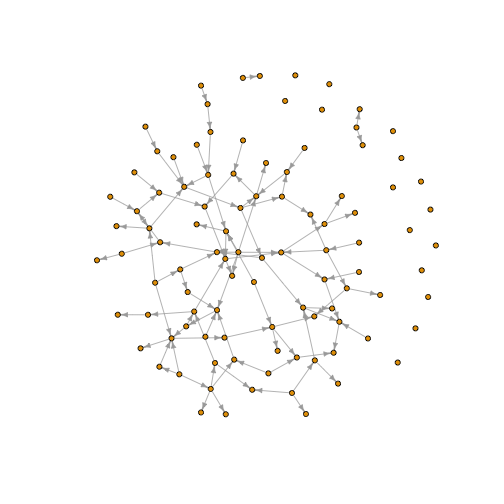

What is a graph

plot of chunk createRandomGraph

  • Lines are edges
  • Circles are nodes / vertices

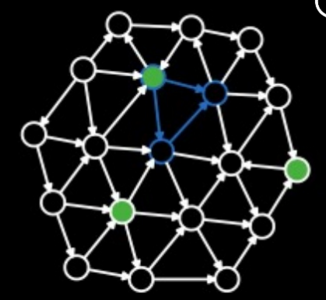

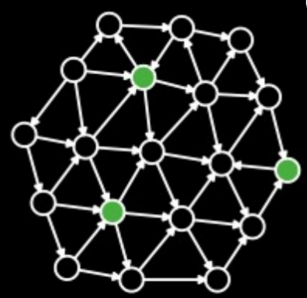

Why NEO4J - Pattern Search

Why use NEO4J

  • Pattern Search

Why NEO4J?

CYPHER allows for path based queries

  • CYPHER allows for an ASCII representation of a path

NODE LABELS

  • Finds nodes which of a certain type
  • Find paths constructed by these nodes

CYPHER: EDGE LABELS

  • Finds nodes which of a certain type
  • Find patterns made up of these nodes
MATCH
    (A:girl) -[:likes]-> (B:boy)
RETURN
    A, B

CYPHER: Path

  • Finds nodes which of a certain type
  • Find patterns made up of these nodes
MATCH
    (A: girl {name: 'ally'})-[:likes]->(B: boy)
RETURN
    B

Using R with Neo4j

library(RNeo4j)

1. Connect with Neo4j

graph2 = startGraph("http://localhost:7474/db/data/")

Security

Set the following if you wish to DISABLE user password login: dbms.security.auth_enabled=false to in conf/neo4j-server.properties.

Cypher Functions 101

Important idoms

1. Match

MATCH (label: {property: something}) -- (label2: {property: something})

2. Collection

extract(x IN collection | x.property))

reduce(s = "", x IN collection | s + x.property))

Cypher Functions 101: Example

Following code:

  1. Finds the following path: (aa) --> (bb) --> (cc)
  2. Sums and returns the value: prop belonging to all nodes connected nodes with label3
MATCH
    (aa:label { prop: "some prop" }) --> (bb:label2) --> (cc:label3)
RETURN
    reduce(sum = 0, property in collect(cc.prop) | sum + property) AS finalSum

more can be found here

NODE Creation

bob = graph2 %>%
        createNode("Person",
                   name = "Bob",
                   age = 24,
                   kids = c("Jenny", "Larry"))
#attributes(bob)$self

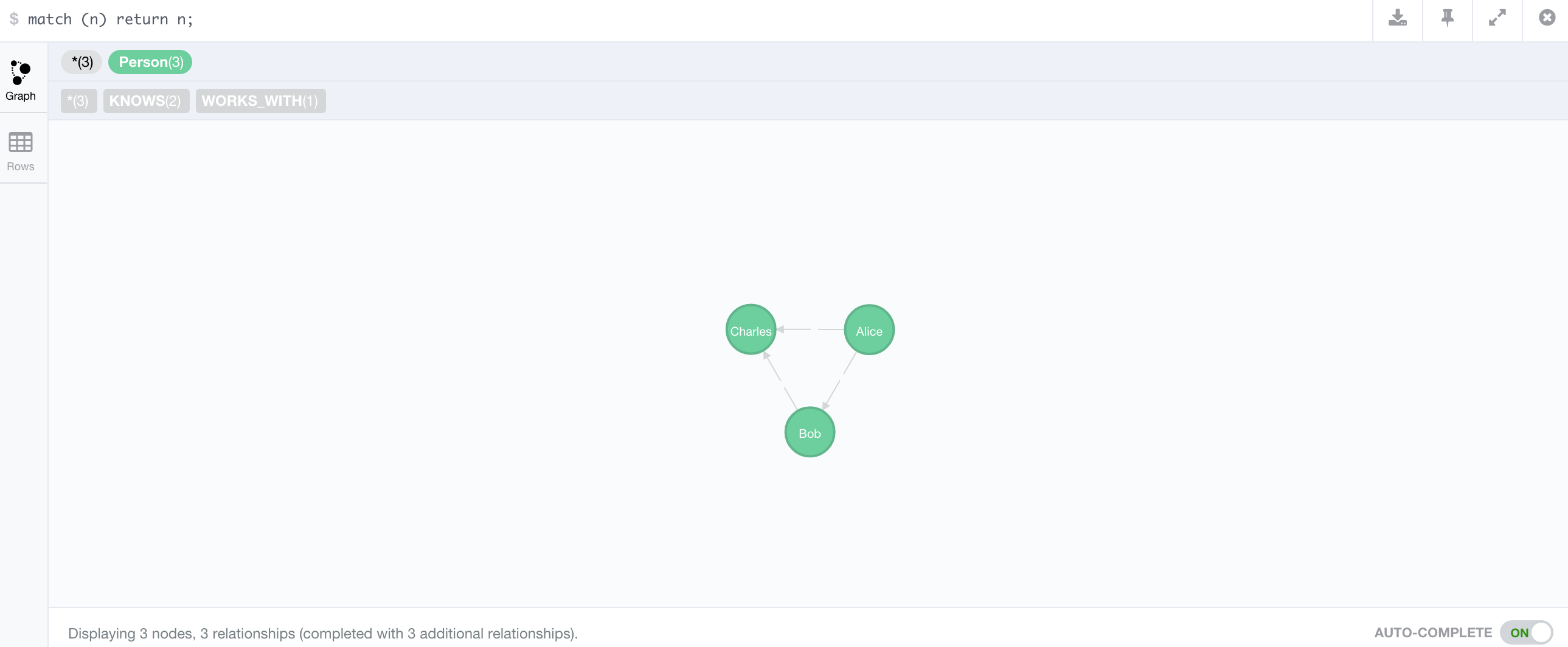

EDGE Creation

alice   = createNode(graph2, "Person", name = "Alice")
#attributes(alice)$self
charles = createNode(graph2, "Person", name = "Charles")
#attributes(charles)$self

createRel(alice, "WORKS_WITH", bob)
createRel(bob, "KNOWS", charles, since = 2000, through = "Work")
createRel(alice, "KNOWS", charles, list(since = 2001, through = "School"))

2. Sending A Cypher Query

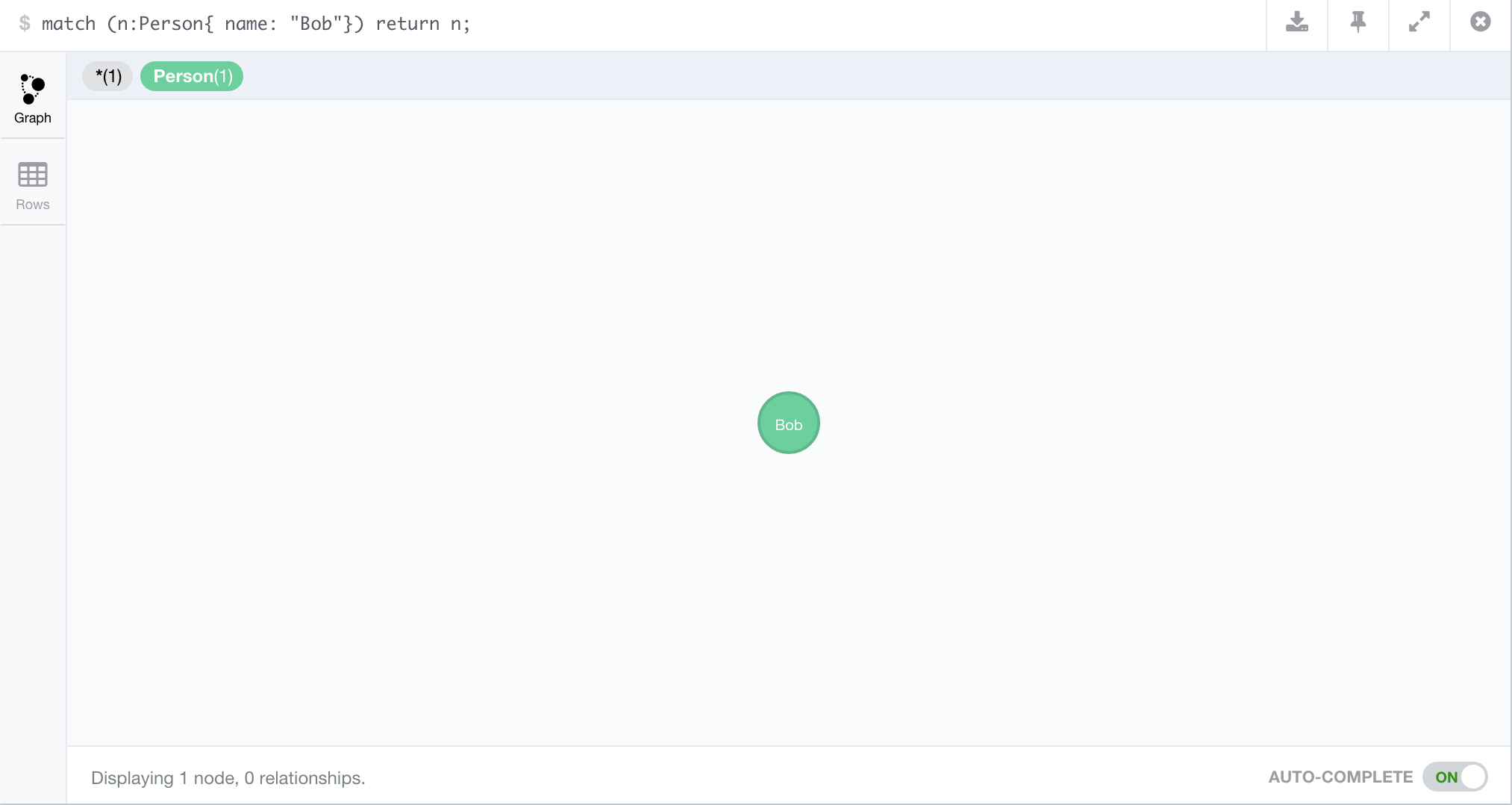

Retrieve NODE

MATCH
    (noi:Person {name:'Bob'})
RETURN
    noi
  • Search for a node, noi
    • with label Person,
      • property name of value Bob

R code

nodeOfInterest <- graph2 %>%
getNodes(
"
MATCH
    (noi:Person {name:'Bob'})
RETURN
    noi")

2a. Cypher Query

Node returned by the query can be saved as a variable in R.

Node Attributes

  • names
  • self
  • property
  • properties
  • labels
  • create_relationship
  • incoming_relationships
  • outgoing_relationships
  • class

    • Self stores the ID, thats how the functions deal with this node

    Node Data

    ## List of 3
##  $ : chr "Bob"
##  $ : int 24
##  $ : chr [1:2] "Jenny" "Larry"

    2b. Cypher Query - Returning as data.frame

    If you know the property you're interested in, you could plan the query to return it as a data.frame

    df = graph2 %>%
cypher(
"MATCH
    (bob:Person {name:'Bob'})
RETURN
    bob.name,
    bob.age
")

    ##   bob.name bob.age
## 1      Bob      24

    Visualising subgraph in IGRAPH

    Using cypher get the subgraph which you're interested in and return as an edge list.

    UNWIND
    {names} AS namelist
MATCH
    (p:Person {name:namelist}) -- (connection:Person)
RETURN
    p.name,
    connection.name

    #Edgelist extraction
edgelist = graph2 %>% cypher(query
, list(names = c("Alice", "Bob", "Charles"))
)
edgelist %<>% setNames(c("from", "to"))

    ##    from      to
## 1 Alice     Bob
## 2 Alice Charles
## 3 Alice     Bob
## 4 Alice Charles
## 5 Alice     Bob
## 6 Alice Charles

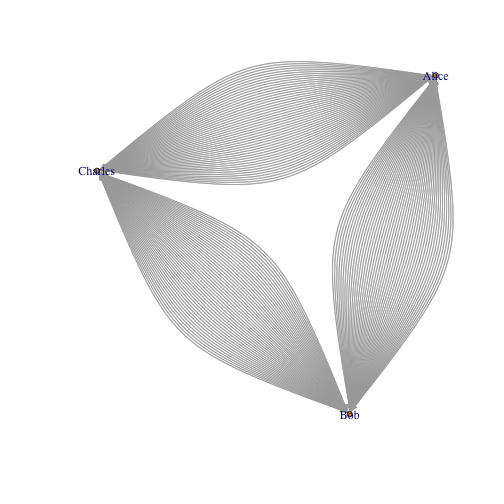

    Convert to igraph object and plot

    g = graph_from_data_frame(edgelist)
plot(g, vertex.size=3, edge.arrow.size=0.5)

    plot of chunk unnamed-chunk-16

    Case Study: Metabolic graph

    • Enzyme -> Compound -> Enzyme
    metabgraph <- startGraph("http://metamaps.scelse.nus.edu.sg:7474/db/data/",
            user = cred$user,
            pass = cred$pass)

    Common Network analyses

    plyer

    Extraction

    • subgraphs
    • components
    • cliches

    Subgraph: 1 order neighbourhood from nodeS of interest

    UNWIND
    { kos } AS koss
OPTIONAL MATCH
    (ako:ko {ko: koss.ko})<--(cpd:cpd)
RETURN
    cpd.cpd        AS child,
    ako.ko         AS parent,
    ako.definition AS parentName,
    ako.name       AS parentSym,
    cpd.name       AS childName,
    cpd.name       AS childSym

    Subgraph: 1 order neighbourhood from nodeS of interest

    nitrogenMetabolism = metabgraph %>%
cypher(query,list(kos = koi))

    child    parent                               parentName  parentSym       childName        childSym
1: cpd:C00011 ko:K18246        carbonic anhydrase 4 [EC:4.2.1.1]        CA4            CO2;            CO2;
2: cpd:C00011 ko:K18245        carbonic anhydrase 2 [EC:4.2.1.1]        CA2            CO2;            CO2;

    Make data.frames: Vertices and Edgelist

    nodes = rbind(
    setNames(unique(select(nitrogenMetabolism, parent, parentName)), c("id", "name")),
    setNames(unique(select(nitrogenMetabolism, child, childName)), c("id", "name"))
)
nitroMetab = graph_from_data_frame(nitrogenMetabolism[,1:2], T, nodes)

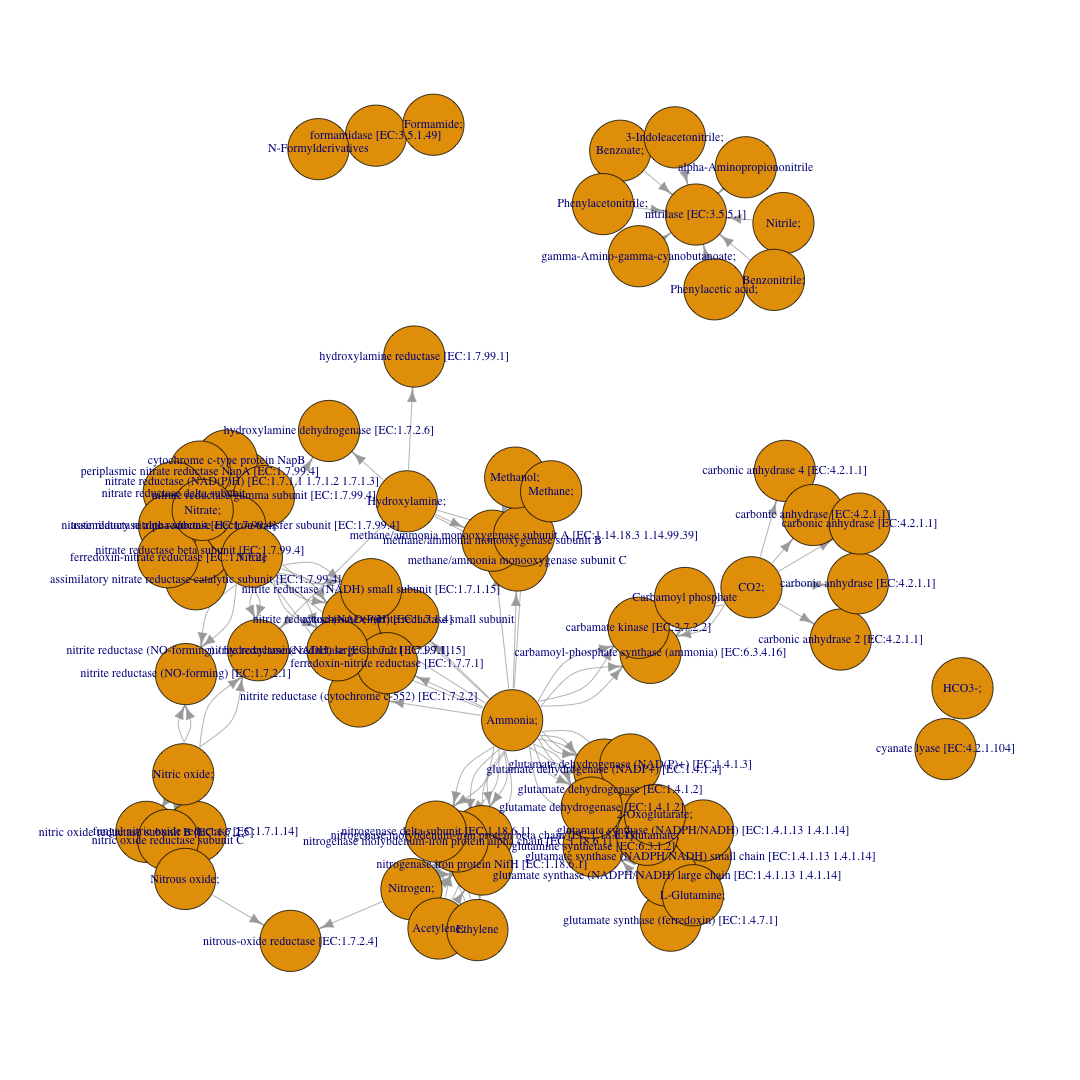

    Extraction: Subgraph

    plot of chunk unnamed-chunk-20

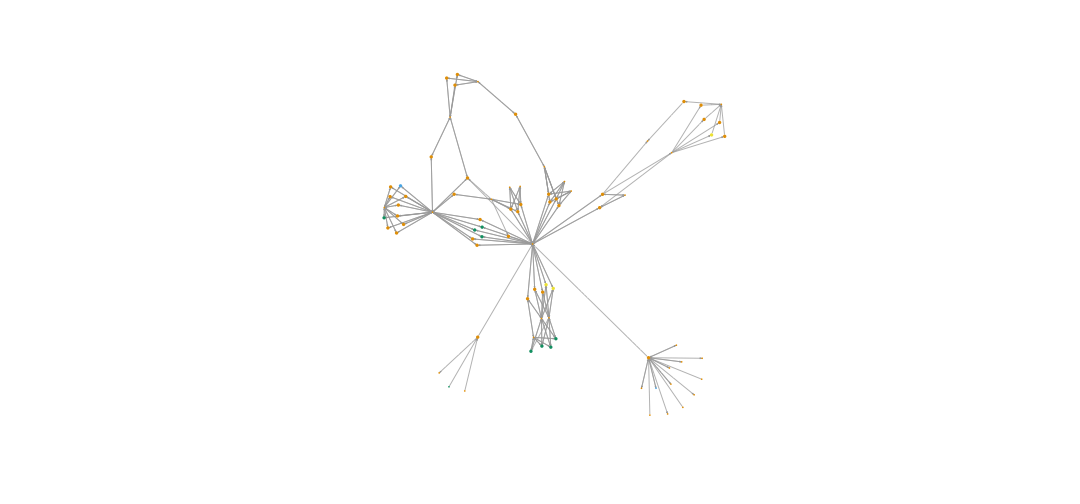

    Cliches - weakly connected components

    V(nitrogenMetab)$color = nitroMetab %>%
    components("weak")           %$%
    membership                   %>%
    unname                       %>%
    as.factor
plot(nitrogenMetab, vertex.label="")

    plot of chunk cliches

    Common Network analyses

    plyer

    Algorithms

    • shortest path
    • Lowest Common Ancestor
    • Centrality
    • Betweeness

    Algorithms: Shortest path

    noi = c("Formate", "HCO3")                      %>%
lapply(function(x){
   which(grepl(x, V(nitrogenMetab)$Definition))
})
shortpath = nitrogenMetab                       %>%
shortest_paths(noi[[1]], noi[[2]], mode="all")  %$%
vpath[[1]]                                      %>%
as.integer

    mapply(function(one, two){
    E(nitrogenMetab)[one %--% two]$color <<- "red"
    E(nitrogenMetab)[one %--% two]$width <<- 5
},
one = shortpath %>% head(n=-1),
two = shortpath %>% tail(n=-1),
SIMPLIFY = FALSE
) %>% invisible

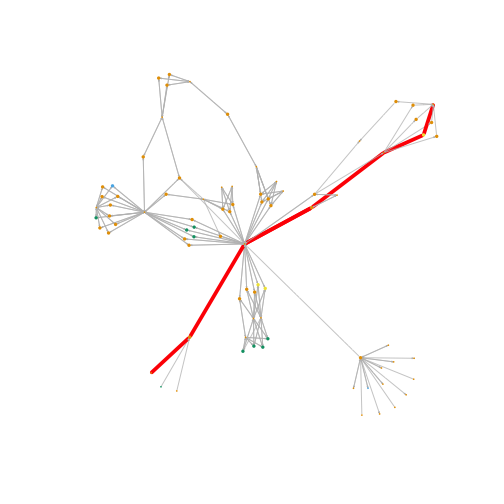

    Algorithms: Shortest path

    plot(nitrogenMetab, vertex.label="")

    plot of chunk unnamed-chunk-25

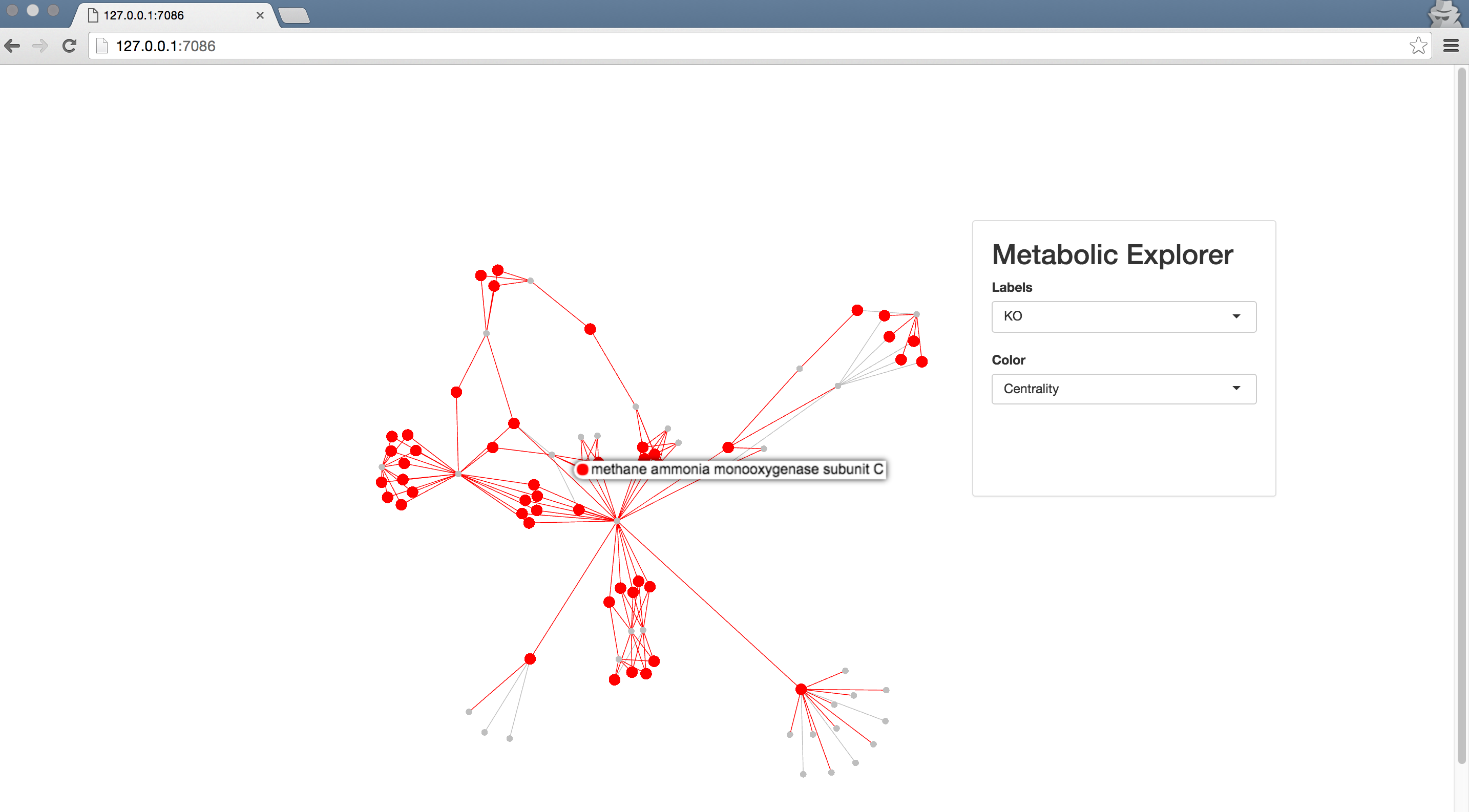

    DEMO - Interactive PLOT

    #Requires two libraries.
devtools::install_github("etheleon/sigma") #Modified version of the original sigma0
devtools::install_github("etheleon/metamaps")

    Session Information

    ## R version 3.1.1 (2014-07-10)
## Platform: x86_64-apple-darwin13.1.0 (64-bit)
##
## locale:
## [1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
##
## attached base packages:
## [1] stats     graphics  grDevices utils     datasets  methods   base
##
## other attached packages:
##  [1] XML_3.98-1.3           shiny_0.12.2           magrittr_1.5
##  [4] dplyr_0.4.1            MetamapsDB_0.0.2       igraph_1.0.1
##  [7] visNetwork_0.1.0       digest_0.6.8           RNeo4j_1.6.1
## [10] slidifyLibraries_0.3.1 slidify_0.4.5          setwidth_1.0-4
## [13] colorout_1.0-3
##
## loaded via a namespace (and not attached):
##  [1] assertthat_0.1    codetools_0.2-14  curl_0.9.3
##  [4] DBI_0.3.1         evaluate_0.7.2    formatR_1.2
##  [7] htmltools_0.2.6   htmlwidgets_0.5.1 httpuv_1.3.3
## [10] httr_1.0.0        jsonlite_0.9.16   knitr_1.10.5
## [13] markdown_0.7.7    mime_0.3          parallel_3.1.1
## [16] R6_2.1.1          Rcpp_0.12.0       rjson_0.2.15
## [19] RJSONIO_1.3-0     sigma_1.0         stringi_0.5-5
## [22] stringr_1.0.0     tools_3.1.1       whisker_0.3-2
## [25] xtable_1.7-4      yaml_2.1.13
